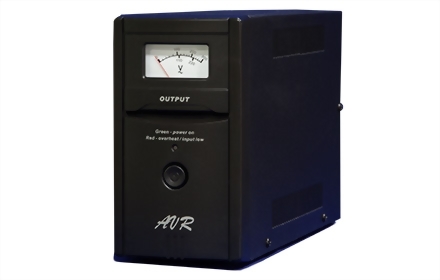

AVR Tipo Eletrônico / Estabilizador (NU)
Compact size NU series electronic Automatic Voltage Regulator is in all-electronic automatic control. It is featured with rapid voltage regulation, frequency wave of output is same as input, free of distortion and has very wide input range. It can absorb surge instantly and there is perfect protecting devices that is suitable for area with instable voltage or where steady voltage required.
Start Delay Protection |
|
Industrial Class Output Outlets |
|
With Surge Protection |
![]() |
![]() |
![]() |
||
Automatic 4-second start delay for protecting high voltage from output directly |
|
Use industrial flame resistance fire-proof output outlets, relatively safe |
|
Equipped with lightning surge protecting element for protecting equipment |
|
|
|
|
|
|
|
|
|
|
No Interference of Low Frequency |
|
Overload / Overheat Protection |
|
|
![]() |
|
![]() |
|
|
Low frequency design keeping equipment from interference of oscillation
|
|
Equipped with over load and over heat double protection
|
|
|

Very wide input voltage range
This series AVR can maintain ≦5% voltage stability when the input is within-23% and + 30% range
True RMS detecting circuit
It has precise True RMS detection and is capable to maintain accurate voltage regulation when the external
power supply is distorted
Zero-cross transfer circuit, with longer life
This series AVR owns accurate zero-cross circuit, the output is without power cut-off time while AVR is working
Automatic start delay with good protecting effects
The AVR will delay the start 4 seconds automatically when physically started and when mains is resumed
after black out, it can protect your equipment from damage of transient high voltage of surge

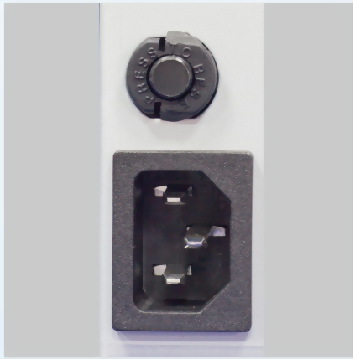

Overload and overheat dual protection
The AVR has overheat protection, in addition to the overload protection, when transformer temperature is
too high, it will cut-off output of AVR automatically
Over low / high input voltage protection
When input voltage is too low, it will cut off output. When input inserted to wrong outlet
(such as 110V AVR inserted into 220V socket) and the voltage is too high, it will turn off internal and
output power and will not damage your equipment as a result of high voltage
Full low frequency working, no interference to your equipment
The AVR is free of any high frequency transforming power circuit and won’t cause any high
frequency disturbance
Output voltmeter indication
This series AVR has analog voltmeter giving clear indication of output voltage
Lightning surge protecting device
It has surge protection device and can effectively absorb 4500A (8/20μs) and can effectively
reduced the damage of thunder strike
Multiple Indication LED
Green LED light on at normal status, and red LED light on at input low voltage or overheat (same LED)

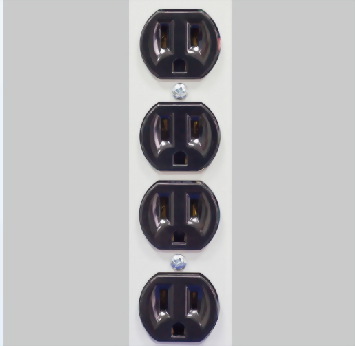

Industrial class output outlet, safe and reliable
Output outlets of this AVR is with industrial class outlets, solid and durable and will not melt due to overheat
as ordinary injection molding product

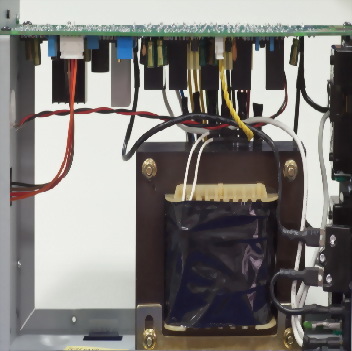

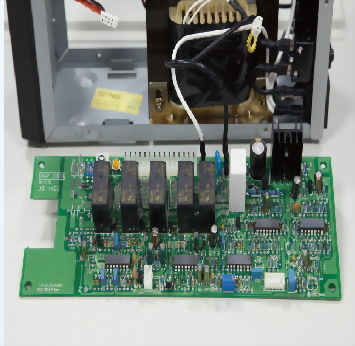

Dual panel design with high reliability
This AVR is in dual-panel design, precisely welded. High resistance to vibration, it gives higher
reliability and longer service life
High efficiency, high power factor, energy conservation and environment friendly
The AVR has efficiency at least 97%, and power factor is better than 0.98. It is the best green energy
conservation product
High power factor, compact, safe and elegant
This series AVR is made of steel shell, it is good in fire protection. Compact, streamlined appearance,
it occupy virtually no space
![]() |
![]() |
![]() |

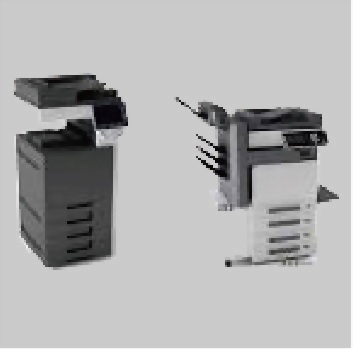

Office IT Equipment |

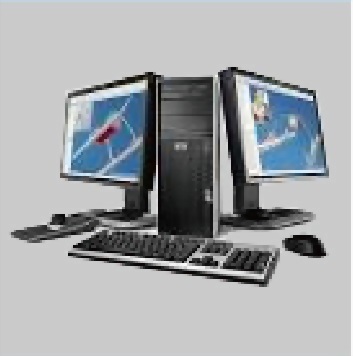

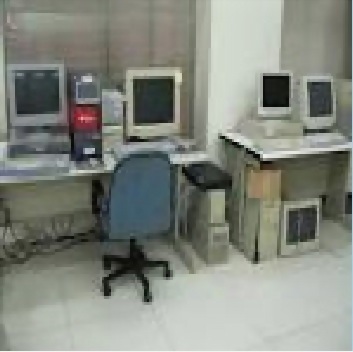

Personal Computer |

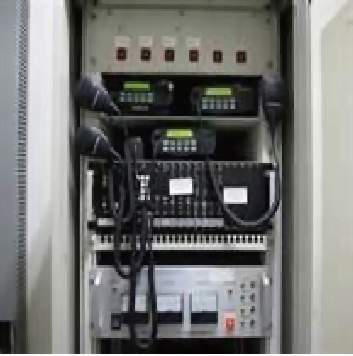

Wireless Communication |
![]() |
![]() |
![]() |
Information Home Appliance |

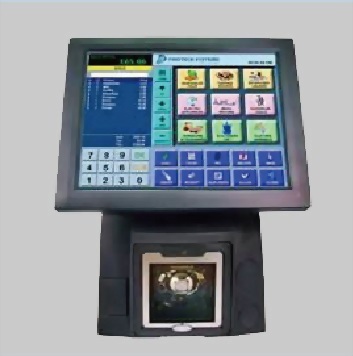

Retailer POS |
Work Station |
